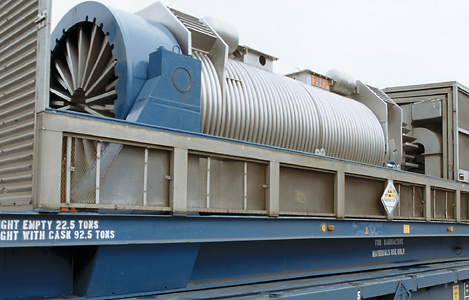

A typical spent nuclear fuel shipping cask mounted on a railroad car.
Every year, around 20 million shipments of radioactive material are transported around the world by road, rail, sea and air. The great majority are unrelated to nuclear power and involve radioactive materials used in medicine, industry, agriculture and research. Only a small proportion of radioactive material transported worldwide is associated with the nuclear fuel cycle, and shipments of highly radioactive spent nuclear fuel or high-level waste represent a particularly small fraction of the total.

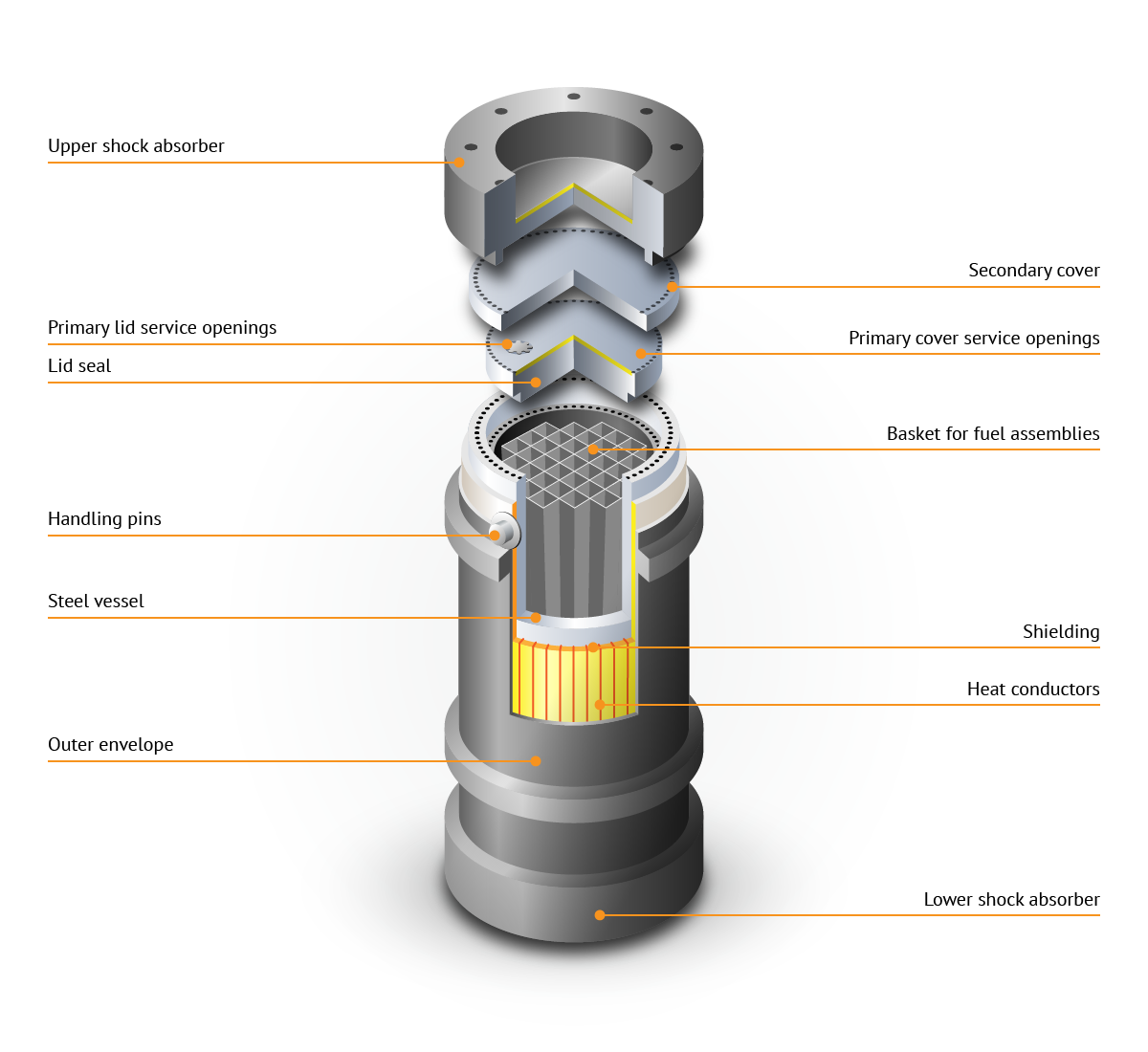

Cross-section of a dual-purpose cask for the transport and storage of spent nuclear fuel.
Free Downloads › Images
Transportation — What and Where
Within the nuclear fuel cycle, spent fuel may be transported from nuclear power plants to centralised interim storage facilities, from storage facilities to reprocessing plants, or eventually to a geological repository for final disposal. Reprocessed nuclear materials and radioactive waste may also require transport between specialised fuel-cycle facilities.

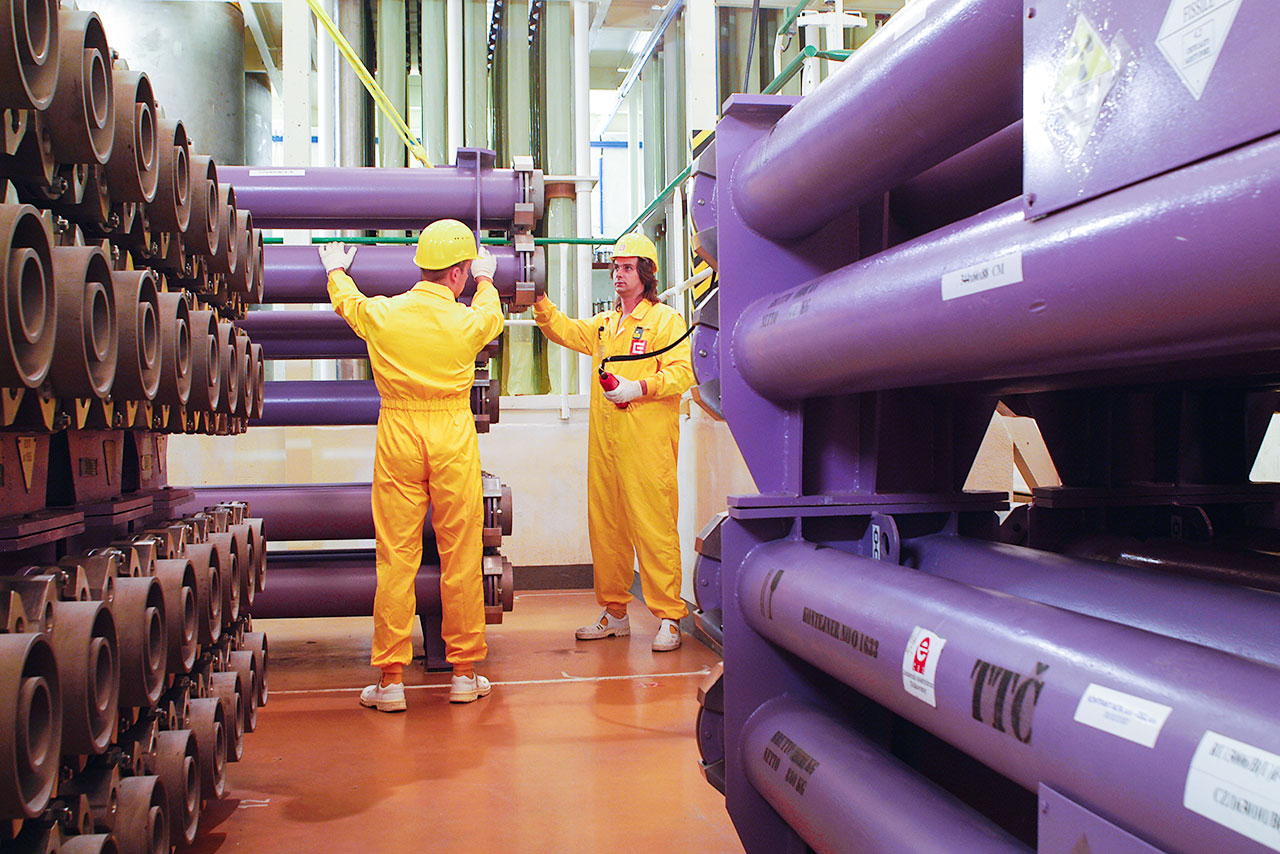

Other nuclear fuel-cycle materials also require transport. Fresh nuclear fuel has a relatively low level of radioactivity and does not require the heavy shielding needed for spent fuel. Uranium concentrate (yellowcake) is commonly transported in drums, while uranium hexafluoride (UF6), used in uranium conversion and enrichment, is transported in specially designed cylinders. UF6 is only weakly radioactive but presents significant chemical hazards and must therefore be handled and transported under strict safety requirements.
Transport Casks

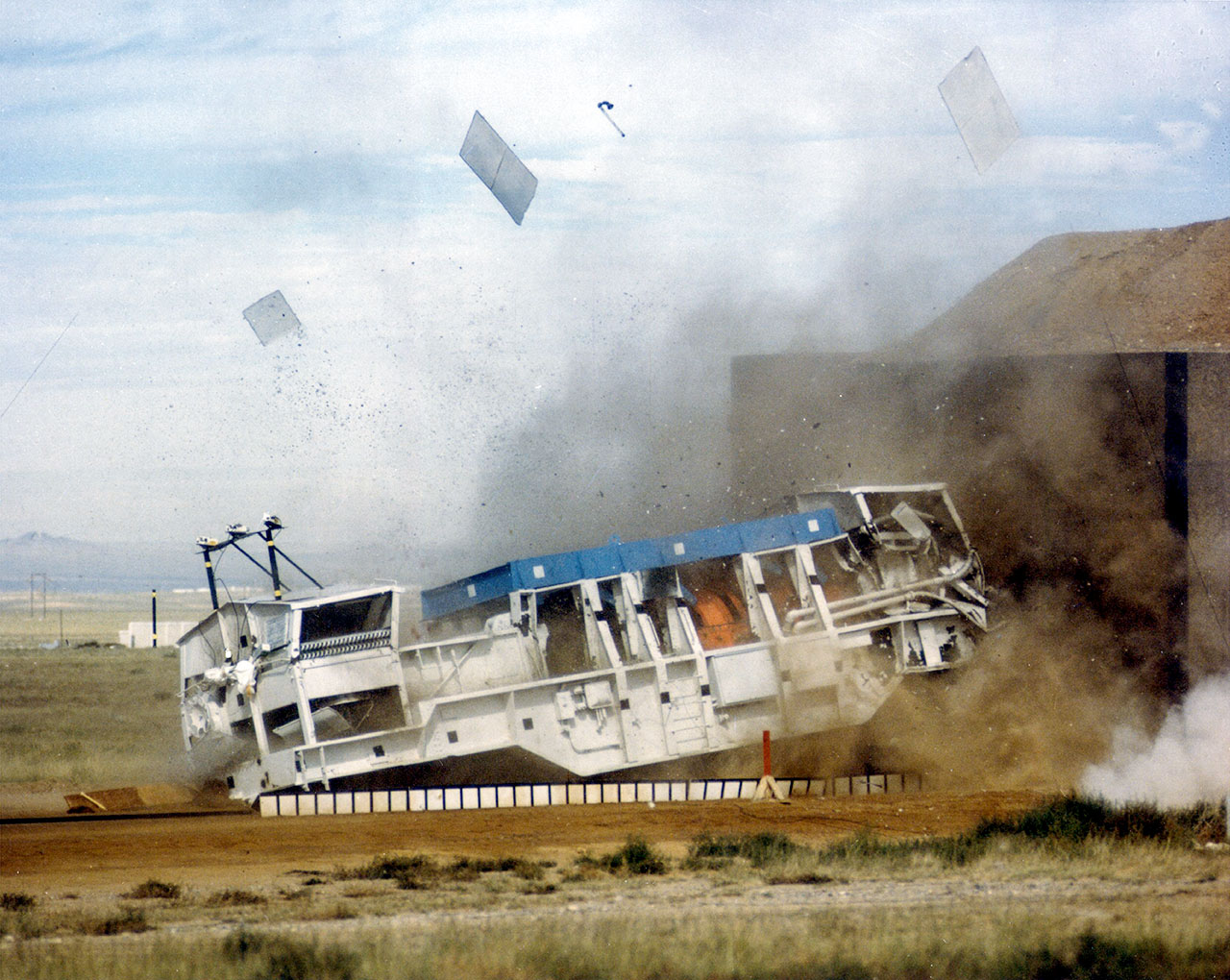

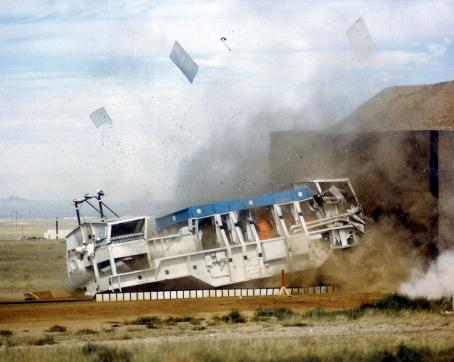

Full-scale crash tests have demonstrated the ability of spent fuel transport casks to withstand extremely severe accident conditions while maintaining their shielding and containment functions.
Before transport,spent nuclear fuel is loaded into a specially designed transport cask that provides containment, radiation shielding, protection against criticality and removal of decay heat. Such casks are massive structures made primarily of steel, often combined with additional shielding materials. Depending on their design and mode of transport, spent fuel casks can weigh well over 100 tonnes when loaded. Cooling fins on the outer surface of some designs facilitate the transfer of decay heat to the surrounding air. The dimensions and capacity vary considerably depending on the design. A large transport cask may weigh around 100 tonnes when empty and carry several tonnes of spent nuclear fuel; when loaded, its total mass can exceed 120 tonnes.
Transport casks must comply with stringent international safety requirements designed to ensure adequate containment, radiation shielding and criticality safety under both normal and hypothetical accident conditions. Type B packages used for highly radioactive materials such as spent fuel must demonstrate their ability to withstand a demanding sequence of tests, including:
 1 m drop onto a steel bar. |
 9 m free fall onto an unyielding surface. |
 Exposure to a fully engulfing fire at 800 °C for 30 minutes. |
 Immersion under 15 m of water for 8 hours. |
Free Downloads › Images
In addition to regulatory tests, transport cask designs have been subjected to numerous full-scale demonstration tests involving high-speed collisions, impacts with massive barriers and severe fires. These tests have demonstrated the considerable robustness of spent fuel transport packages under extreme accident conditions.
Transport Vehicles
Casks containing spent nuclear fuel and other highly radioactive materials may be transported by road, rail or sea, depending on their size, weight and destination. Heavy road and rail shipments may require specialised vehicles and handling equipment, while maritime shipments of spent fuel are carried by specially designed ships. Radioactive materials are also routinely transported by air, particularly medical and industrial radioisotopes, but large consignments of spent nuclear fuel are normally transported by surface routes.

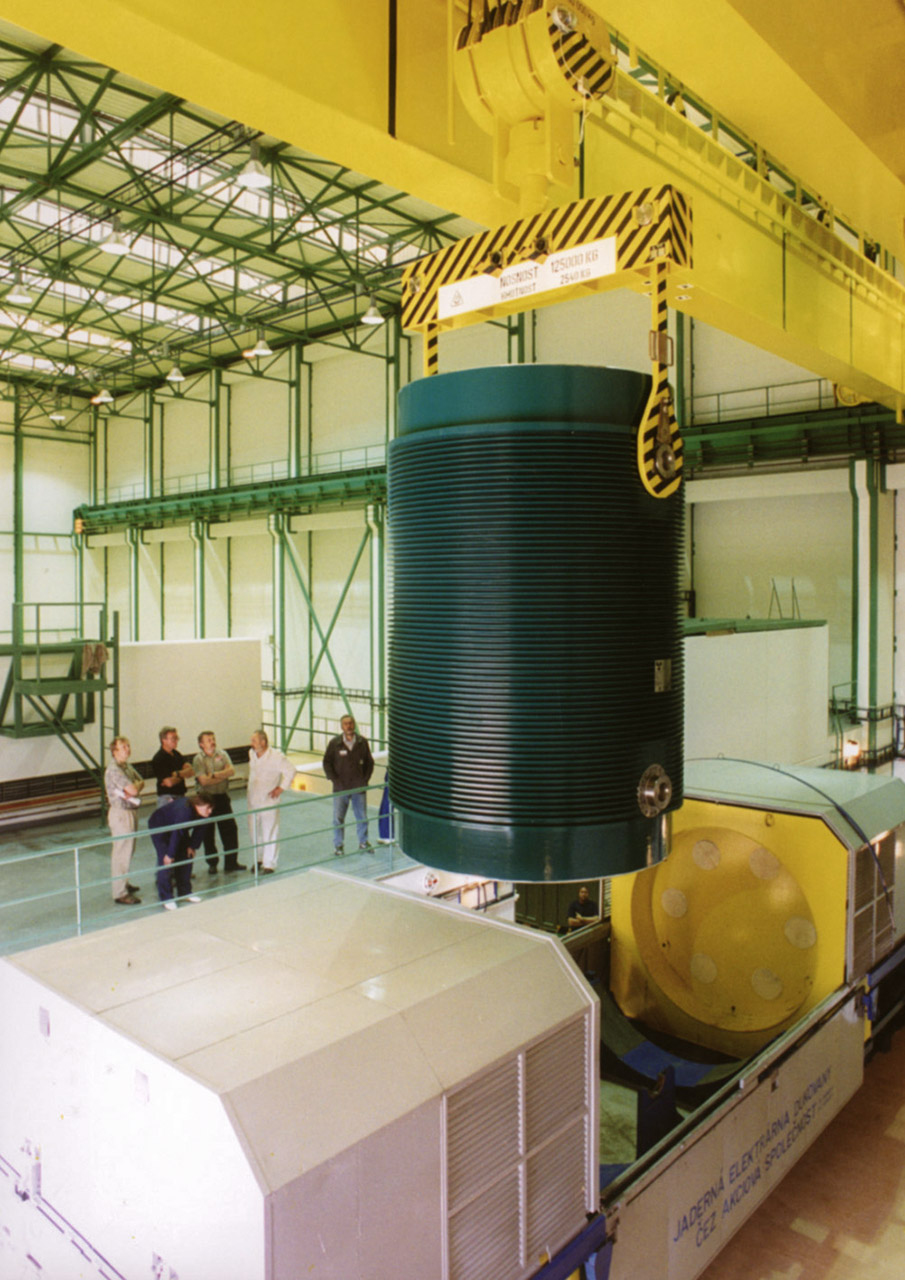

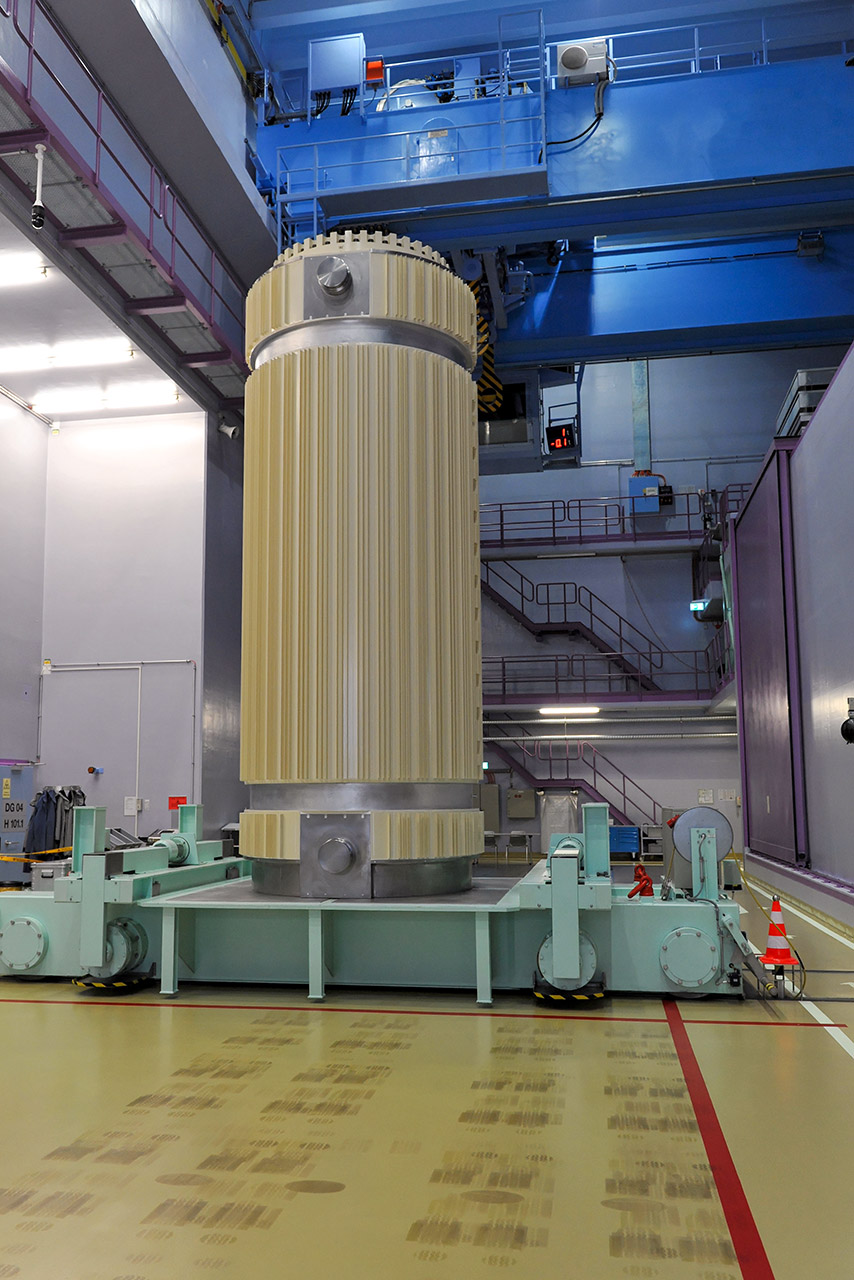

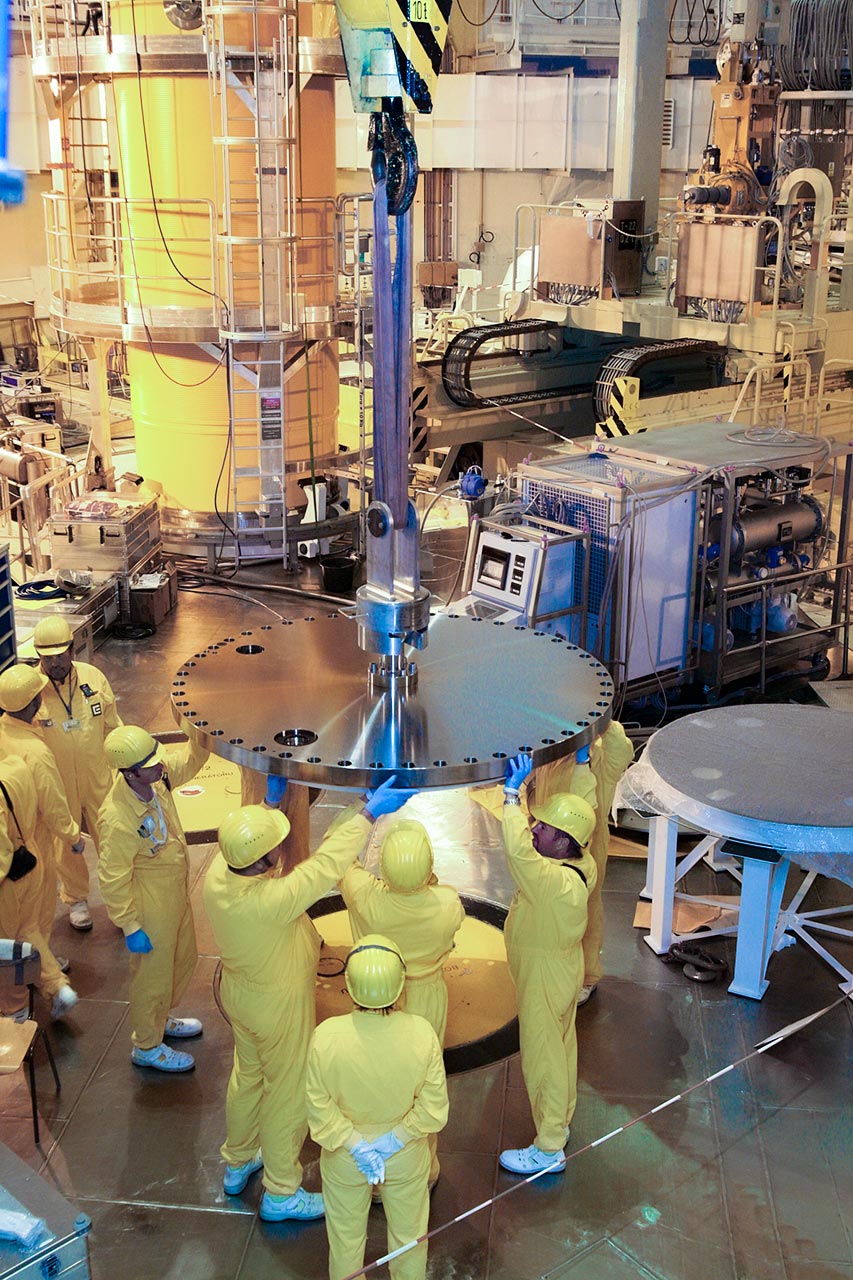

A transport and storage cask for spent nuclear fuel being handled inside an interim storage facility. Such casks provide containment, radiation shielding, decay heat removal and physical protection during transport and long-term storage.

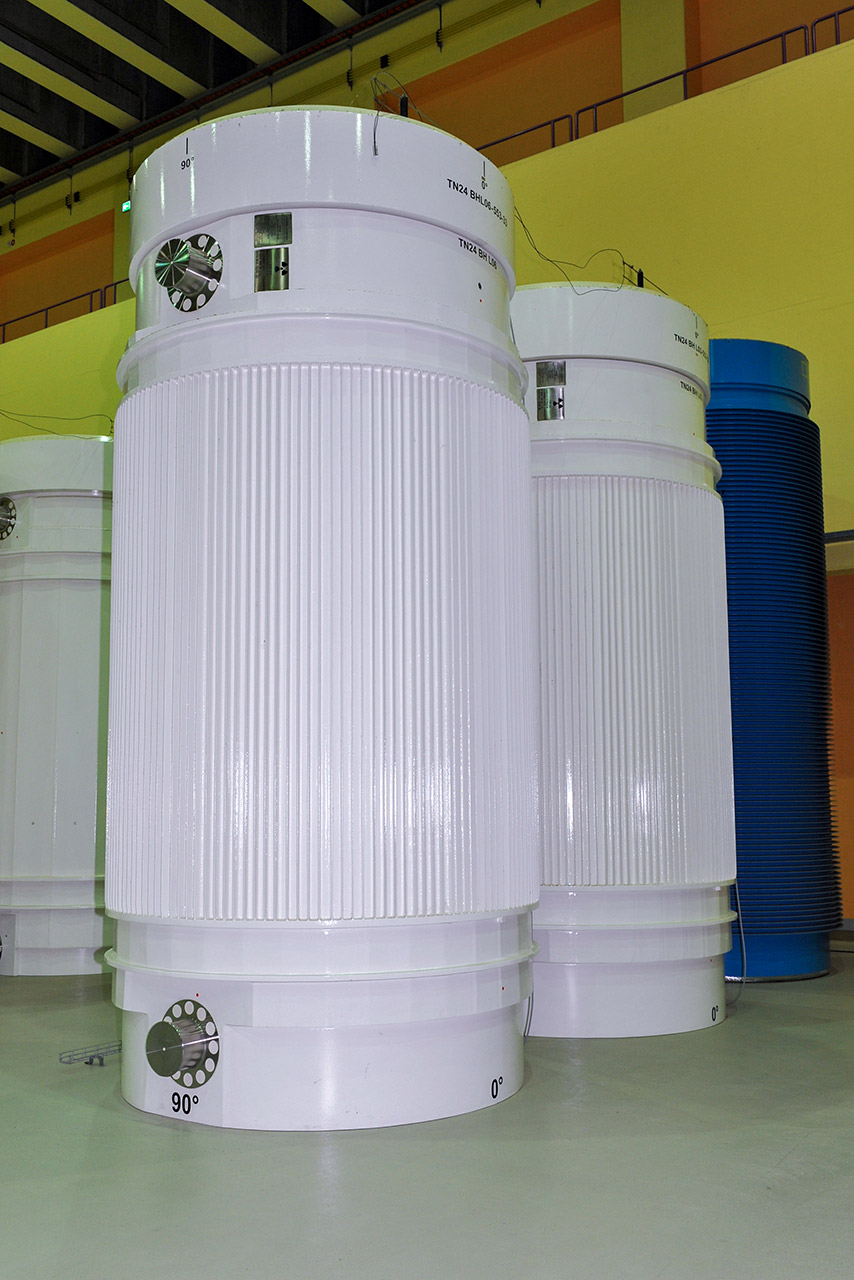

Dual-purpose casks can be used for both the transportation and interim storage of spent nuclear fuel, eliminating the need to transfer the fuel between containers.
Since 1971, at least 25,000 shipments of spent nuclear fuel have been transported worldwide over many millions of kilometres by land and sea. This extensive transport experience has been achieved without radiological releases causing harm to the public.
